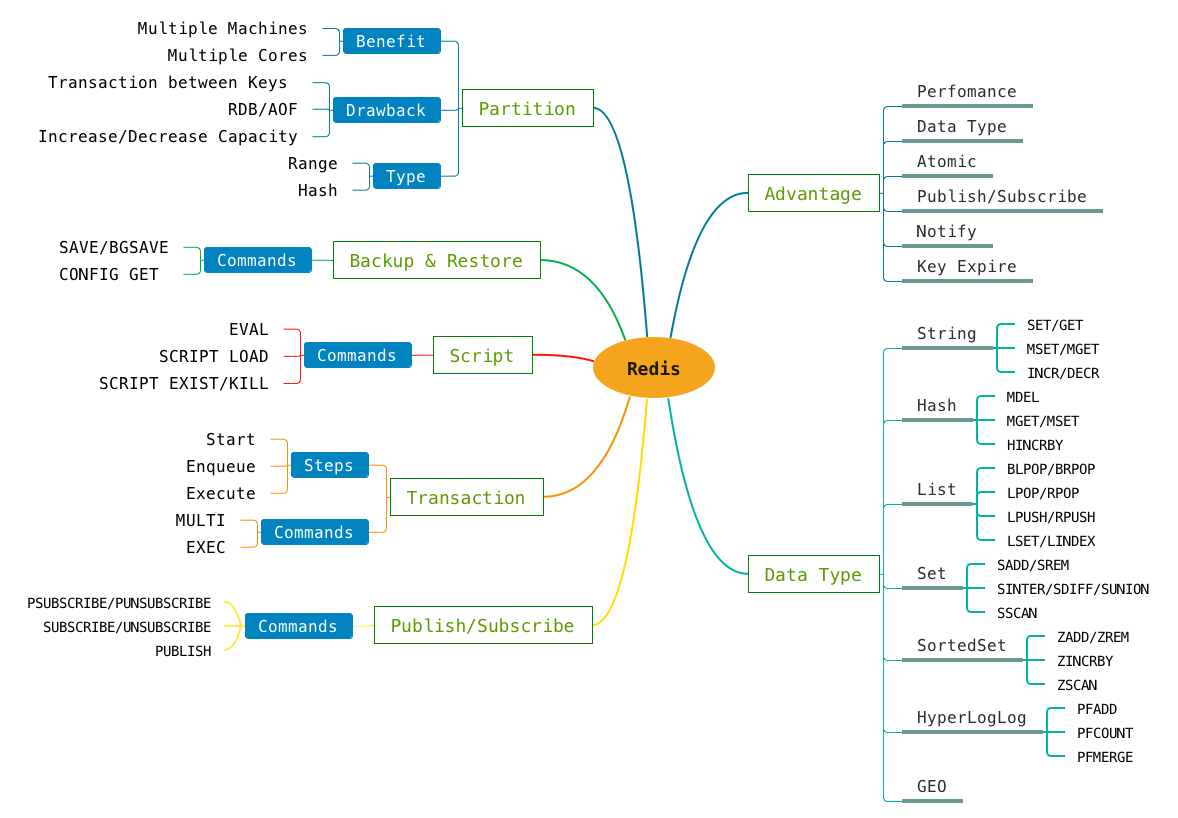

This post includes a few mind maps for Redis ranging from quick start to implementation.

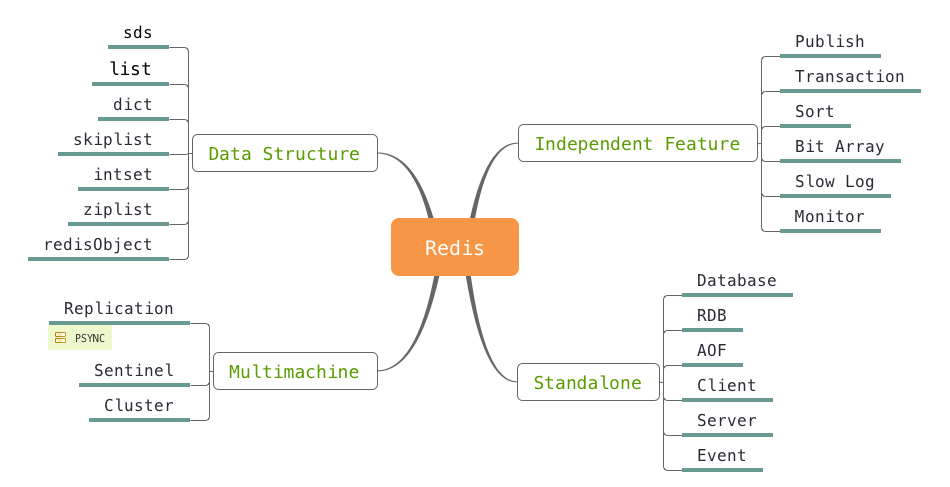

Implementation Overview Link to heading

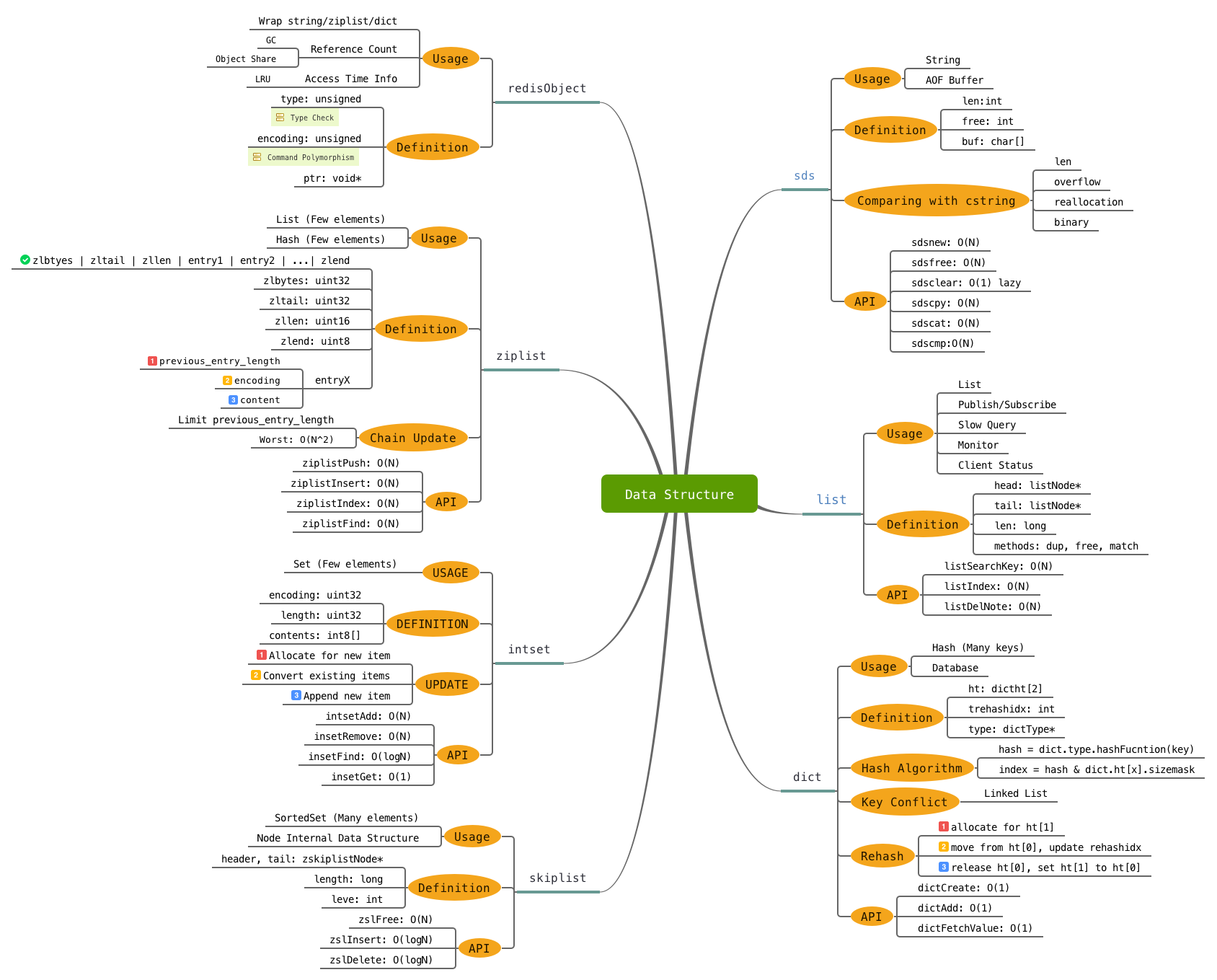

Data Structure Link to heading

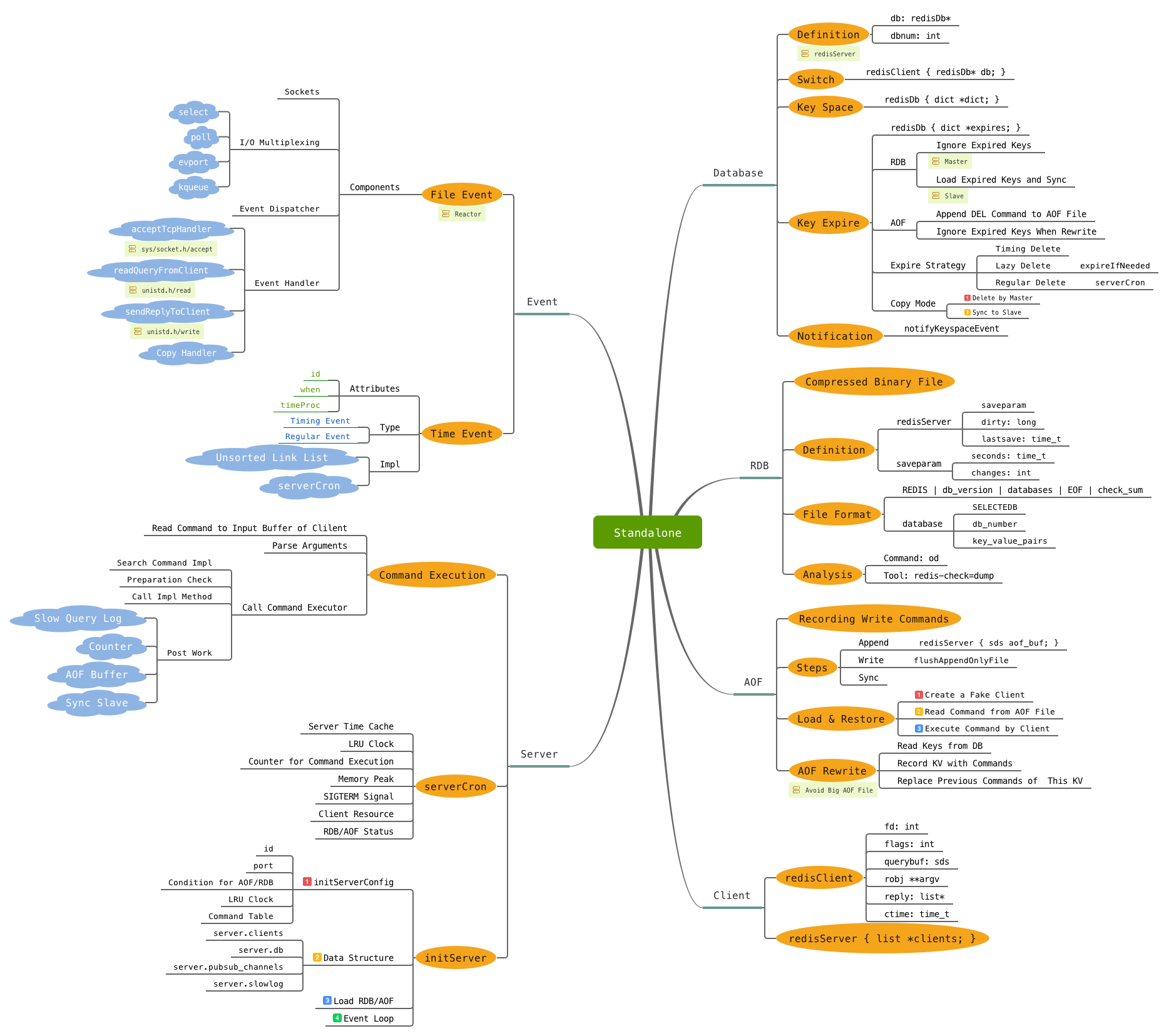

Standalone Link to heading

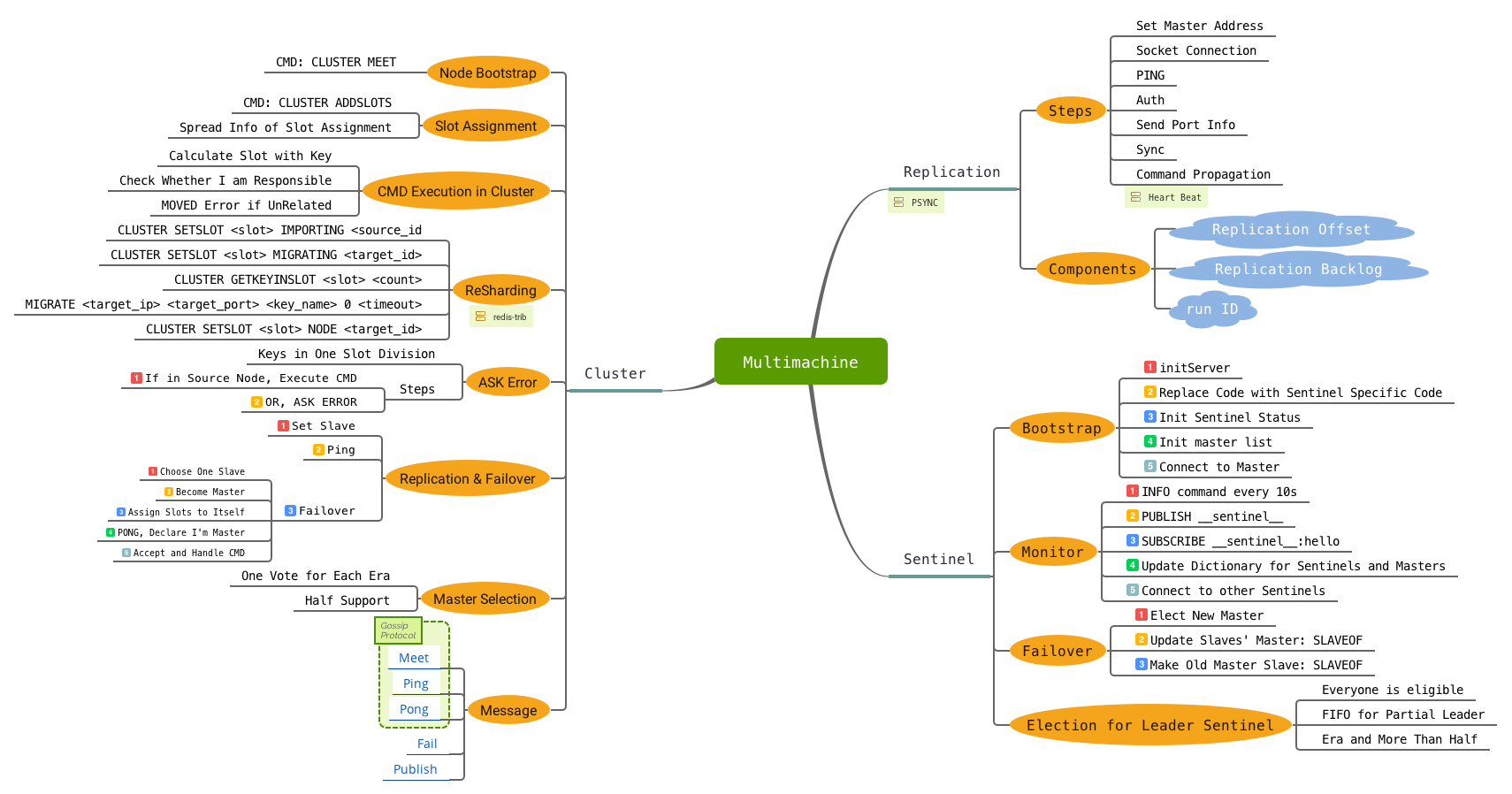

Multimachine Link to heading

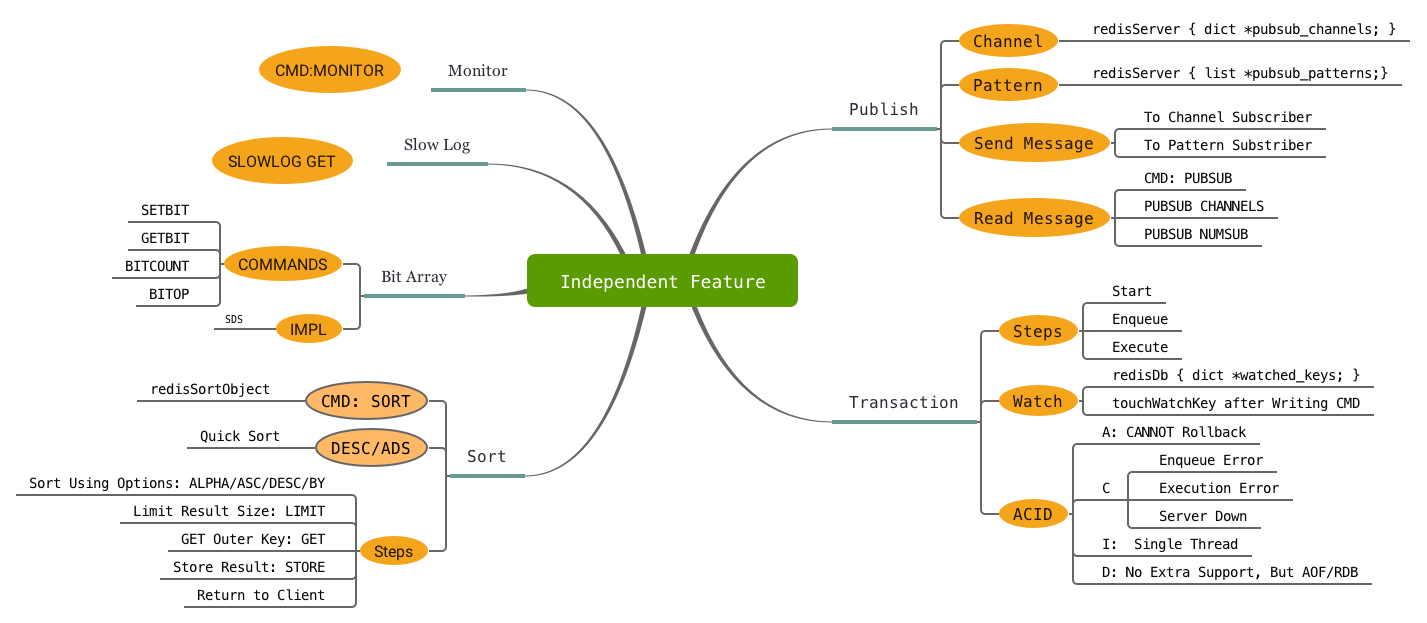

Independent Feature Link to heading
