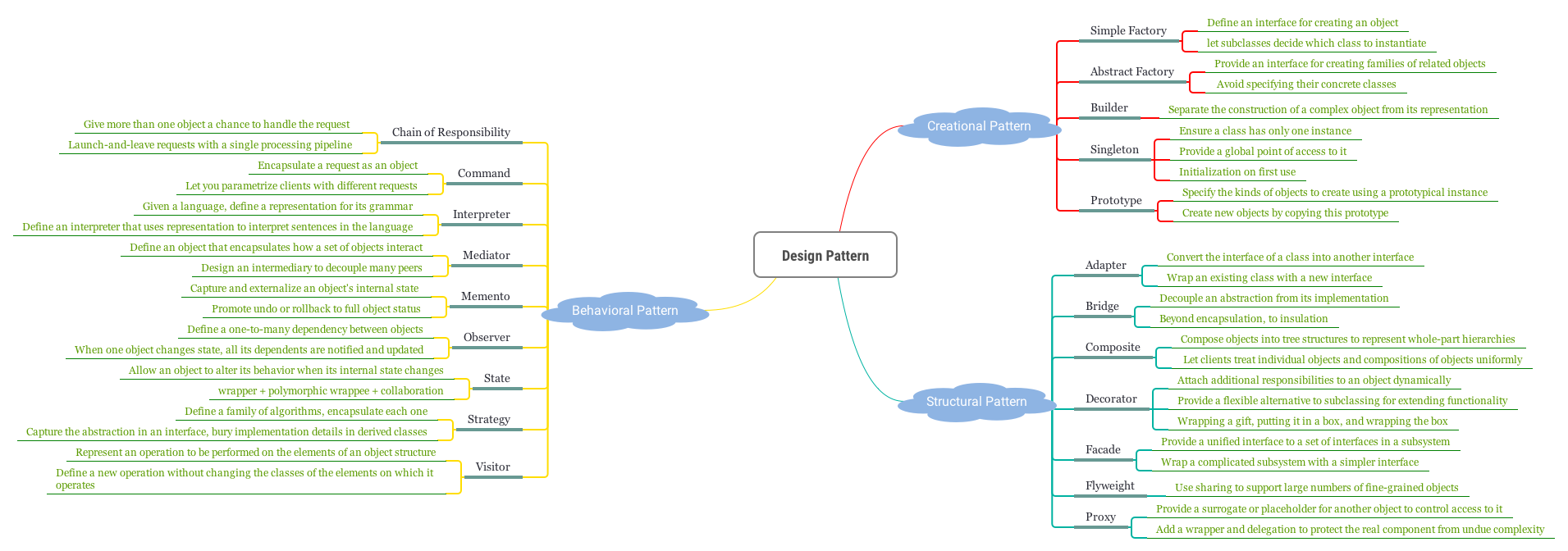

This post summarizes some design patterns I used in daily work or learnt from books.

Creational Pattern Link to heading

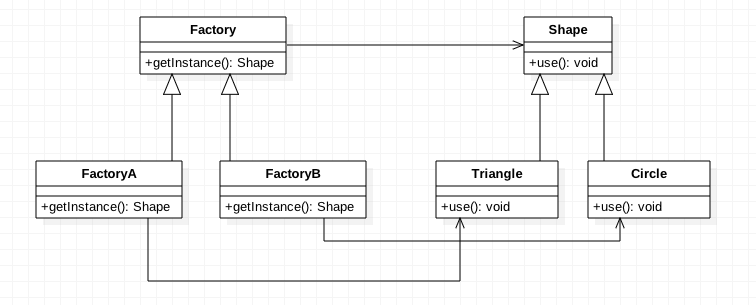

Factory Link to heading

Define an interface for creating an object.
Let subclasses decide which class to instantiate.

from abc import ABCMeta, abstractmethod

class Shape(metaclass=ABCMeta):
    @abstractmethod
    def op(self):
        pass

class Triangle(Shape):
    def op(self):
        print("triangle")

class Circle(Shape):
    def op(self):
        print("circle")

class Factory(metaclass=ABCMeta):
    def __init__(self):
        self.shape = self.getInstance()

    @abstractmethod
    def getInstance(self):
        pass

class ConcreteFactoryA(Factory):
    def getInstance(self):
        return Triangle()

class ConcreteFactoryB(Factory):
    def getInstance(self):
        return Circle()

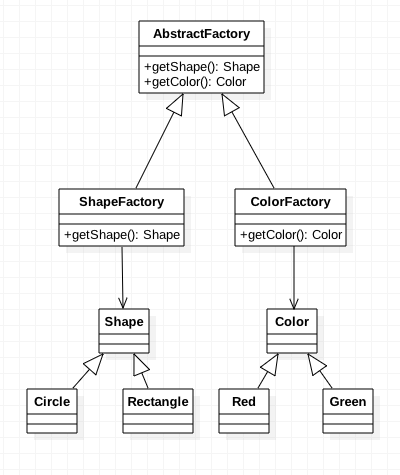

Abstract Factory Link to heading

Provide an interface for creating families of related objects.
Avoid specifying their concrete classes.

from abc import ABCMeta, abstractmethod

class Shape(metaclass=ABCMeta):
    @abstractmethod
    def op(self):
        pass

class Triangle(Shape):
    def op(self):
        print("triangle")

class Color(metaclass=ABCMeta):
    @abstractmethod
    def op(self):
        pass

class Red(Color):
    @abstractmethod
    def op(self):
        print("red")

class Factory(metaclass=ABCMeta):
    def __init__(self):
        self.shape = self.getInstance()

    @abstractmethod
    def getShape(self):
        pass

    @abstractmethod
    def getColor(self):
        pass

class ShapeFactory(Factory):
    def getShape(self):
        return Triangle()

class ColorFactory(Factory):
    def getColor(self):
        return Red()

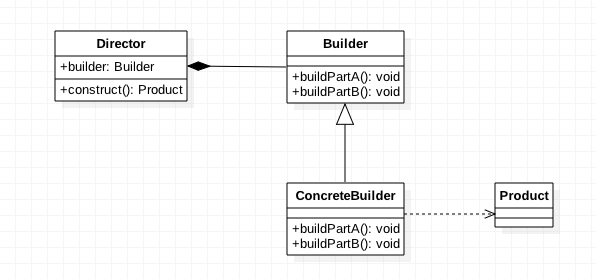

Builder Link to heading

Separate the construction of a complex object from its representation.

class Director:
    def __init__(self):
        self._builder = None

    def construct(self, builder):
        self._builder = builder
        self._builder.buildPartA()
        self._builder.buildPartB()

class Builder(metaclass=ABCMeta):
    def __init__(self):
        self.product = Product()

    @abstractmethod
    def buildPartA(self):
        pass

    @abstractmethod
    def buildPartB(self):
        pass

class ConcreteBuilder(Builder):
    def buildPartA(self):
        pass

    def buildPartB(self):
        pass

class Product:
    pass

Singleton Link to heading

Ensure a class has only one instance.
Provide a global point of access to it.
Initialization on first use.

class Singleton(type):
    def __init__(cls, name, bases, attrs, **kwargs):
        super().__init__(name, bases, attrs)
        cls._instance = None

    def __call__(cls, *args, **kwargs):
        if cls._instance is None:
            cls._instance = super().__call__(*args, **kwargs)
        return cls._instance

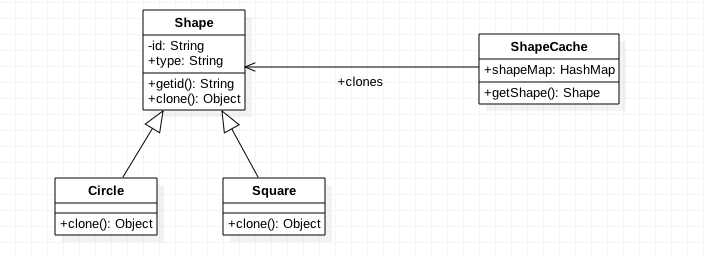

Prototype Link to heading

Specify the kinds of objects to create using a prototypical instance.
Create new objects by copying this prototype.

import copy

class Prototype:
    """
    Example class to be copied.
    """

    pass

def main():
    prototype = Prototype()
    prototype_copy = copy.deepcopy(prototype)

Structural Pattern Link to heading

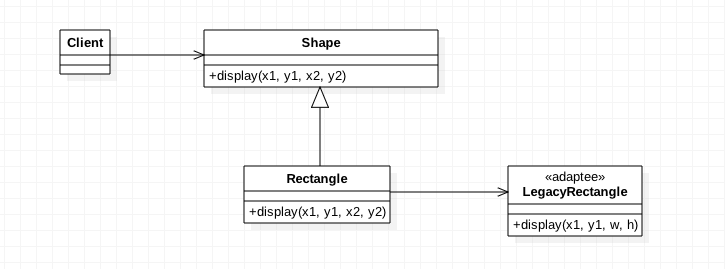

Adapter Link to heading

Convert the interface of a class into another interface.
Wrap an existing class with a new interface.

from abc import ABCMeta, abstractmethod

class Shape(metaclass=ABCMeta):
    @abstractmethod
    def display(self, x1, y1, x2, y2):
        pass

class Rectangle(Shape):
    def __init__(self):
        self._adaptee = LegacyRectangle()

    def display(self, x1, y1, x2, y2):
        self._adaptee.display(x1, y1, x2-x1, y2-y1)

class LegacyRectangle:
    def display(self, x1, y1, w, h):
        pass

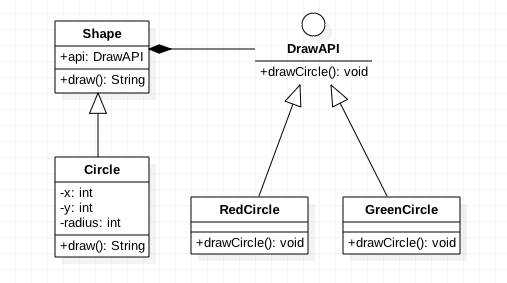

Bridge Link to heading

Decouple an abstraction from its implementation.
Beyond encapsulation, to insulation.

from abc import abstractmethod, ABCMeta

class Shape:
    def __init__(self, api):
        self._api = api

    def draw(self):
        self._api.drawCircle()

class DrawAPI(metaclass=ABCMeta):
    @abstractmethod
    def drawCircle(self):
        pass

class RedCircle(DrawAPI):
    def drawCircle(self):
        pass

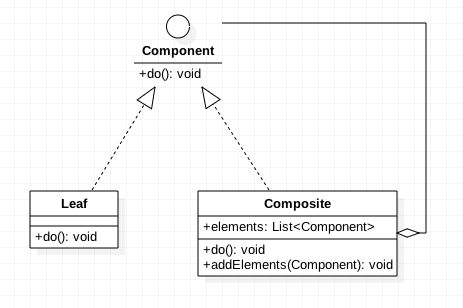

Composite Link to heading

Compose objects into tree structures to represent whole-part hierarchies.
Let clients treat individual objects and compositions of objects uniformly.

from abc import abstractmethod, ABCMeta

class Component(metaclass=ABCMeta):
    @abstractmethod
    def do(self):
        pass

class Composite(Component):
    def __init__(self):
        self._children = set()

    def do(self):
        for child in self._children:
            child.do()

    def add(self, component):
        self._children.add(component)

    def remove(self, component):
        self._children.discard(component)

class Leaf(Component):
    def do(self):
        pass

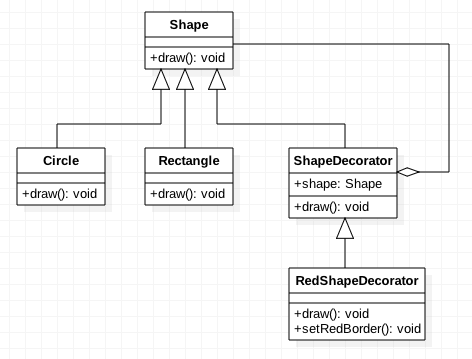

Decorator Link to heading

Attach additional responsibilities to an object dynamically.
Provide a flexible alternative to subclassing for extending functionality.
Wrapping a gift, putting it in a box, and wrapping the box.

from abc import abstractmethod, ABCMeta

class Shape(metaclass=ABCMeta):
    @abstractmethod
    def draw(self):
        pass

class ShapeDecorator(Shape, metaclass=ABCMeta):
    def __init__(self, shape):
        self._shape= shape

    @abstractmethod
    def operation(self):
        pass

class RedShapeDecorator(ShapeDecorator):
    def operation(self):
        self._shape.operation()

class Circle(Shape):
    def operation(self):
        pass

def main():
    cc = Circle()
    decorator = RedShapeDecorator(cc)
    decorator.operation()

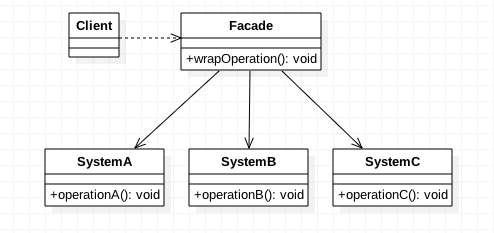

Facade Link to heading

Provide a unified interface to a set of interfaces in a subsystem.
Wrap a complicated subsystem with a simpler interface.

class Facade:
    def __init__(self):
        self._subsystem_1 = Subsystem1()
        self._subsystem_2 = Subsystem2()

    def operation(self):
        self._subsystem_1.operation1()
        self._subsystem_1.operation2()
        self._subsystem_2.operation1()
        self._subsystem_2.operation2()

class Subsystem1:
    def operation1(self):
        pass

    def operation2(self):
        pass

class Subsystem2:
    def operation1(self):
        pass

    def operation2(self):
        pass


def main():
    facade = Facade()
    facade.operation()

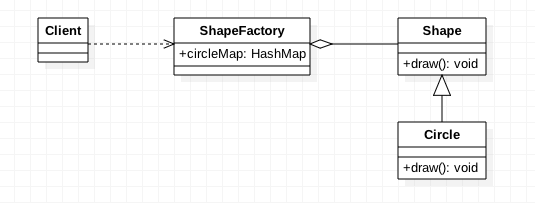

Flyweight Link to heading

Use sharing to support large numbers of fine-grained objects.

from abc import ABCMeta, abstractmethod

class ShapeFactory:
    def __init__(self):
        self._circleDict = {}

    def getShape(self, key):
        if key not in self._circleDict:
            circle = Circle()
            self._circleDict[key] = circle

        return self._circleDict[key]


class Shape(metaclass=ABCMeta):
    def __init__(self):
        self.intrinsic_state = None

    @abstractmethod
    def draw(self):
        pass


class Circle(Shape):
    def draw(self):
        pass

def main():
    factory = ShapeFactory()
    concrete = factory.getShape("key")
    concrete.draw()

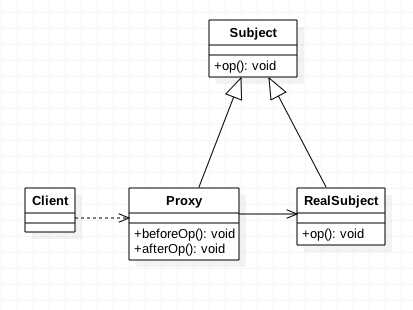

Proxy Link to heading

Provide a surrogate or placeholder for another object to control access to it.
Add a wrapper and delegation to protect the real component from undue complexity.

from abc import ABCMeta, abstractmethod

class Subject(metaclass=ABCMeta):
    @abstractmethod
    def op(self):
        pass

class Proxy(Subject):
    def __init__(self, real_subject):
        self._real_subject = real_subject

    def op(self):
        self._real_subject.op()


class RealSubject(Subject):
    def op(self):
        print("real")

def main():
    real_subject = RealSubject()
    proxy = Proxy(real_subject)
    proxy.op()

Behavioral Pattern Link to heading

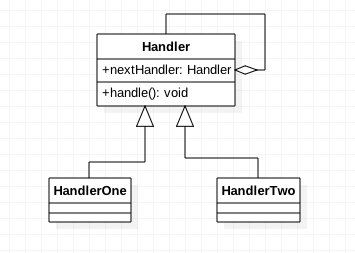

Chain of Responsibility Link to heading

Give more than one object a chance to handle the request.
Launch-and-leave requests with a single processing pipeline.

class Handler(metaclass=ABCMeta):
    def __init__(self, next=None):
        self._next = next
        self._canHandle = True

    @abstractmethod
    def handle(self):
        pass

class HandlerOne(Handler):
    def handle_request(self):
        if self.canHandle:
            pass
        elif self._next:
            self._next.handle()

class HandlerTwo(Handler):
    def handle(self):
        if self._canHandle:
            pass
        elif self._next:
            self._next.handle()

def main():
    handler1 = HandlerOne()
    handler2 = HandlerTwo(handler1)
    handler2.handle()

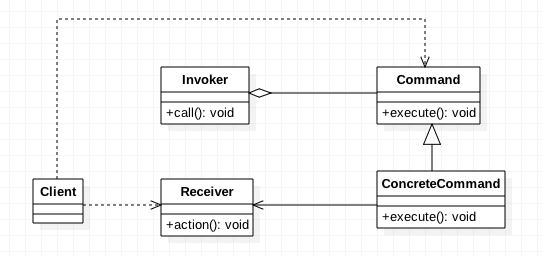

Command Link to heading

Encapsulate a request as an object.
Let you parametrize clients with different requests.

class Invoker:
    def __init__(self):
        self._commands = []

    def add(self, command):
        self._commands.append(command)

    def call(self):
        for command in self._commands:
            command.execute()

class Command(metaclass=ABCMeta):
    def __init__(self, receiver):
        self._receiver = receiver

    @abstractmethod
    def execute(self):
        pass

class ConcreteCommand(Command):
    def execute(self):
        self._receiver.action()

class Receiver:
    def action(self):
        pass

def main():
    receiver = Receiver()
    cmd = ConcreteCommand(receiver)
    invoker = Invoker()
    invoker.add(cmd)
    invoker.call()

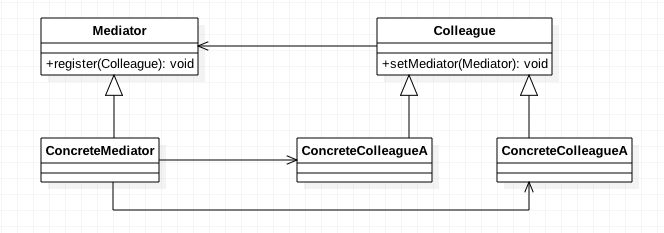

Mediator Link to heading

Define an object that encapsulates how a set of objects interact.
Design an intermediary to decouple many peers.

from abc import ABCMeta, abstractmethod

class Mediator(metaclass=ABCMeta):
    def __init__(self):
        self._colleagues = {}

    @abstractmethod
    def register(self, colleague):
        pass

    @abstractmethod
    def op(self):
        pass

class ConcreteMediator(Mediator):
    def register(self, colleague):
        self._colleagues.append(colleague)
        colleague.setMeidator(self)

class Colleague(metaclass=ABCMeta):
    def __init__(self, mediator=None):
        self._mediator = mediator

    def setMediator(self, mediator):
        self._mediator = mediator

    @abstractmethod
    def op(self):
        pass

class ColleagueA:
    def op(self):
        pass

class ColleagueB:
    def op(self):
        pass

def main():
    c1 = ColleagueA()
    c2 = ColleagueB()
    mediator = ConcreteMediator()
    mediator.register(c1)
    mediator.register(c2)

    c1.op()
    c2.op()

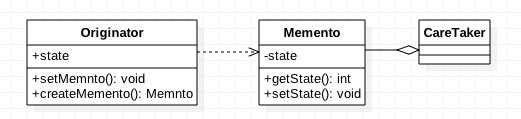

Memento Link to heading

Capture and externalize an object’s internal state.
Promote undo or rollback to full object status.

class Memnto:
    def __init__(self, state=None):
        self._state = state

    def getState(self):
        return self._state

class Originator:
    def __init__(self, state=None):
        self._state = state

    def setState(self, state):
        self._state = state

    def getStateFromMemento(self, memento):
        self._state = memento.getState()

    def createMemento(self):
        return Memnto(self._state)

class CareTaker:
    def __init__(self):
        self._mem = []

    def add(self, state):
        self._mem.append(state)

    def get(self, index):
        if index < len(self._mem):
            return self._mem[index]
def main():
    originator = Originator()
    taker = CareTaker()

    originator.setState(True)
    taker.add(originator.createMemento())

    originator.getStateFromMemento(taker.get(0))

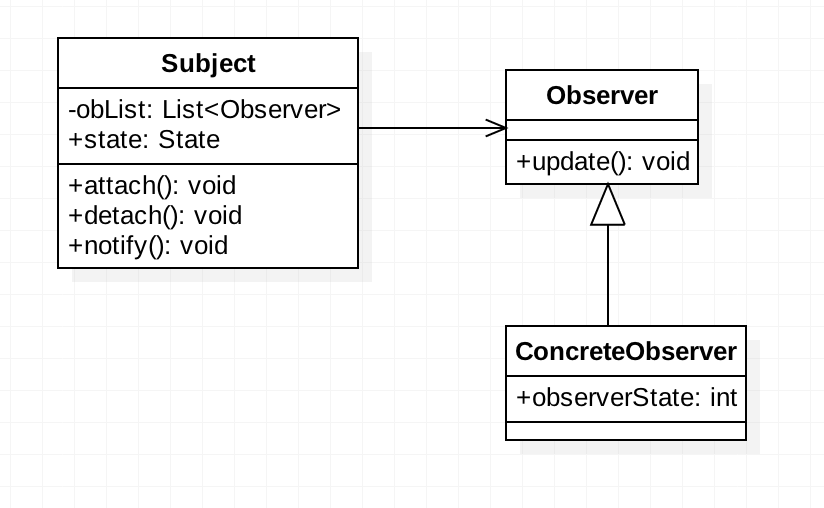

Observer Link to heading

Define a one-to-many dependency between objects.
When one object changes state, all its dependents are notified and updated.

class Subject:
    def __init__(self):
        self._state = None
        self._obList = []

    def attach(self, observer):
        observer._subject = self
        self._obList.add(observer)

    def detach(self, observer):
        observer._subject = None
        self._obList.discard(observer)

    def _notify(self):
        for observer in self._obList:
            observer.update(self._state)

    def updateState(self, state):
        self._state = state
        self._notify()

class Observer(metaclass=ABCMeta):
    def __init__(self):
        self._subject = None
        self._state = None

    @abstractmethod
    def update(self, arg):
        pass

class ConcreteObserver(Observer):
    def update(self, state):
        self._state = state

def main():
    subject = Subject()
    observer =  ConcreteObserver()
    subject.attach(observer)
    subject.updateState(123)

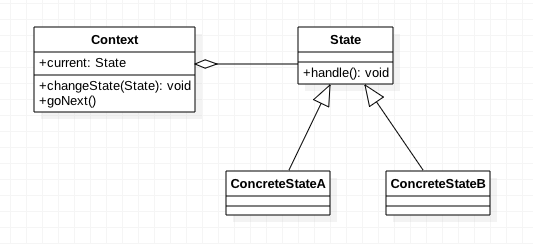

State Link to heading

Allow an object to alter its behavior when its internal state changes.
Wrapper + polymorphic wrappee + collaboration.

class Context:
    def __init__(self, state):
        self._state = state

    def request(self):
        self._state.handle()

class State(metaclass=ABCMeta):
    @abstractmethod
    def handle(self):
        pass

class ConcreteStateA(State):
    def handle(self):
        pass

class ConcreteStateB(State):
    def handle(self):
        pass

def main():
    state = ConcreteStateA()
    context = Context(state)
    context.request()

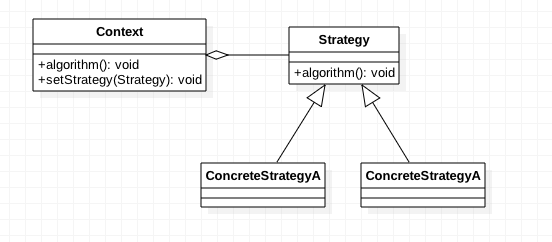

Strategy Link to heading

Define a family of algorithms, encapsulate each one.
Capture the abstraction in an interface, bury implementation details in derived classes.

class Context:
    def __init__(self, strategy):
        self._strategy = strategy

    def algorithm(self):
        self._strategy.algorithm()


class Strategy(metaclass=ABCMeta):
    @abstractmethod
    def algorithm(self):
        pass

class ConcreteStrategyA(Strategy):
    def algorithm(self):
        pass

class ConcreteStrategyB(Strategy):
    def algorithm(self):
        pass

def main():
    strategy = ConcreteStrategyA()
    context = Context(strategy)
    context.algorithm()

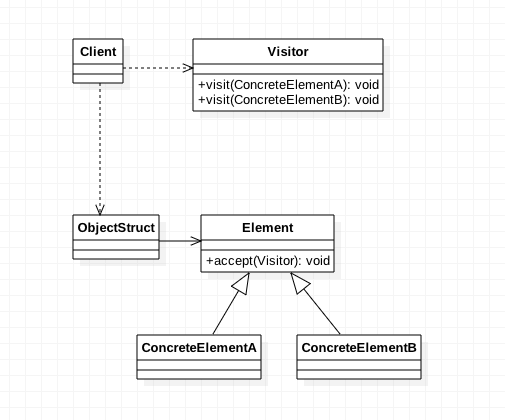

Visitor Link to heading

Represent an operation to be performed on the elements of an object structure.
Define a new operation without changing the classes of the elements on which it operates.

class Element(metaclass=ABCMeta):
    @abstractmethod
    def accept(self, visitor):
        pass

class ConcreteElementA(Element):
    def accept(self, visitor):
        visitor.visitA(self)

class ConcreteElementB(Element):
    def accept(self, visitor):
        visitor.visitB(self)

class Visitor(metaclass=ABCMeta):
    @abstractmethod
    def visitA(self, eleA):
        pass

    @abstractmethod
    def visitB(self, eleB):
        pass

class ConcreteVisitorA(Visitor):
    def visitA(self, eleA):
        pass

    def visitB(self, eleB):
        pass

def main():
    visitor = ConcreteVisitorA()
    element = ConcreteElementA()
    element.accept(visitor)

Reference
